Portable Oxygen Genertor

(Captive and Independent Source of Oxygen Generation)
Portable Oxygen Generator
TOOLS

Product Description

  • A portable Oxygen Generator that adopts PSA Technology to produce Medical Grade oxygen.
  • Flowrate : 20 LPM Capacity
  • Pressure : 4.2 barG
  • Purity : 93% +/- 3%
  • Clean and Lean Alternative for Medium & Small Hospitals.
  • Captive source which will replace capital intensive & bulky systems.
  • Versatile, Efficacious & Cost Effective.
  • Indigenous and India centric in designs

Applications

  • Medical : Medium & Small Hospitals
  • Industrial use : welding, gas cutting etc.
  • Veterinary use.
  • Ambulatory Services.
  • Defence & Disaster Management.
  • Oxygen therapy. ( Patients at home, recuperation centers)

Technical Specifications

Patient outlet points 5 (@ 4 LPM)
Max Oxygen Flow 20 LPM
Oxygen concentration 93 % +/- 3%
Outlet oxygen pressure 4.2 barG
Power 230 V – 60Hz
Sound Level 55 db (A)
Dimensions 103*61*112 cm
Weight 135 kgs

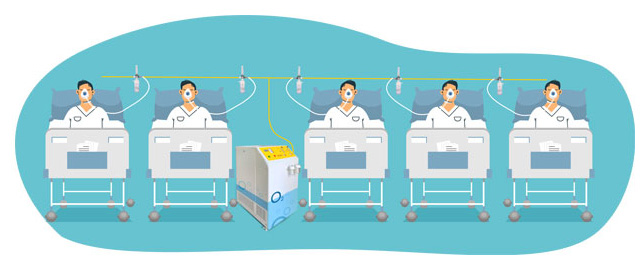

Oxygen supply for 5 patient at a time

Oxygen supply for 5 patient at a time

Standard features

Uninterrupted oxygen supply.
Can cater oxygen upto Five patients at a time (@ 4 LPM ).
Compatible with Ventilator & Anesthesia Station.
Oxygen Pressure is adjustable from 0.5 bar to 4.2 bar.
High and low pressure indicator.
Built-in purity analyser for constant monitoring.
Compact design & space saving.
Low maintenance cost.
