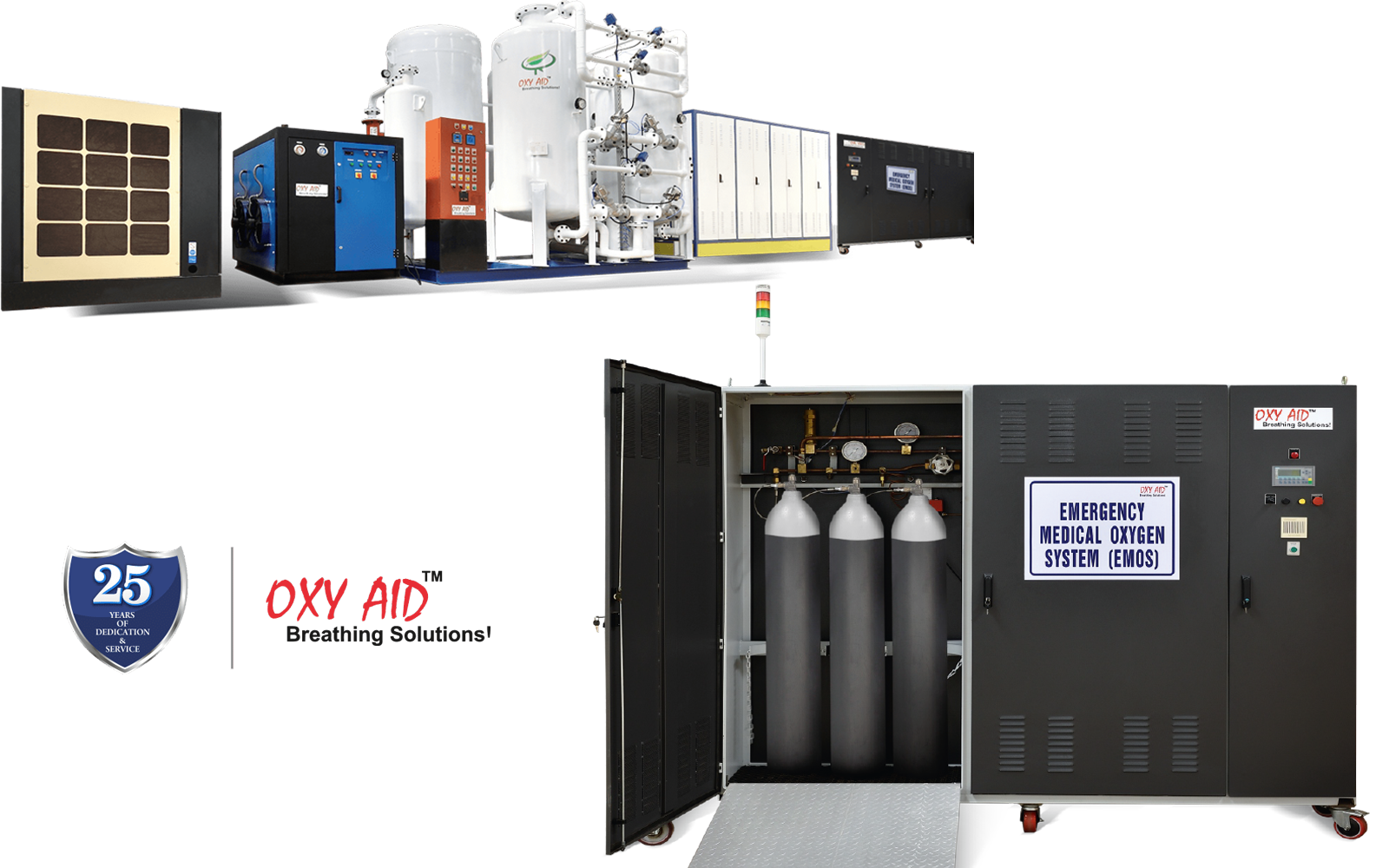

Emergency Medical Oxygen System (EMOS)
Manifold Dimensions
| Number of Cascade Cylinders | Emergency Holding of Cylinders (7m3) |
| 2X2 (4 Nos) | 24 cylinders |
| 3X3 (3 Nos) | 36 cylinders |
| 4X4 (8 Nos) | 48 cylinders |
| 5X5 (10 Nos) | 150 cylinders |
EMOS is the only versatile system, compatible with all the available and known sources of Medical Oxygen Gas Generation and Distribution Systems.
These systems are designed for operational optimization in providing a consistent and exigent supply of Medical Oxygen at any given time and at any given Location.
Compatible with Secondary & Tertiary Generation sources of Medical Oxygen and Distribution:
- PSA & VPSA Medical Oxygen Generators (Gaseous) - PRIMARY SOURCE
- Liquid Medical Oxygen Tanks (LMO, Cryogenic) - SECONDARY SOURCE
- Medical Gas Pipeline System (MGPS) with Cylinder Banks & Cascades - TERTIARY SOURCE
Salient features
In Case of a Source Failure EOMS Will Automatically & Alternatively switch the supply of the medical oxygen from the Medical Oxygen Generator to Secondary or Tertiary source of Oxygen Supply.
EMOS is incorporated with IOT which enables to monitor:
- Health of the Medical Oxygen Generator ( Operating Flow rate, Pressure, Purity & Duration of Operation)
- Availability of Oxygen in the Liquid Medical Oxygen Tank
- Availability of Oxygen in the Cylinders
The System is equipped with two manually operated shut-off valves (in case of malfunction), mid range gauge, line pressure regulators, Pressure Transmitters and High pressure Solenoid valves.
Compact cabinet Reliable with Ease of use.
Easy access to manifold PLC control panel with and Ease of Maintenance.
Mobile Cabinet with Rugged System fitted on Heavy Duty Caster wheels with Brakes. Can be Customized.
Lever to indicate priority ramp.
Connecting hoses (NF, DIN, BS, CGA ...)
High Pressure Flexible Metal Braided Tubing (Spool)of 200bar for extension in an Emergency.
Cylinder ramps & safety valves.
Alarm panel with Audio visual alarm, connected to pressure transmitters
ISO 7396-1 compliant
Parameter
Total System is IOT Enabled. It can be monitored from a central monitoring station (CMS) or on Mobile Phones
The manifold shall be supplied with a non-return valve for connection to the distribution system
8 Inch HMI.
PLC- Siemens.
Stainless Steel Bacterial Filter.
Dimensions - 8.2 x 6.7 x 2 ft. (Can be Customized)
Panel finish - baked on powder coated.
Piping System: All materials are ISO 7396-1 compliant.
Class: Degreased Copper Pipeline.
Changeover Unit: Electrical.
Output connections for local alarms: One set of dry contacts N.0
Max inlet (cylinder) pressure 150-200 bar at Cylinder Filling Manifold.
