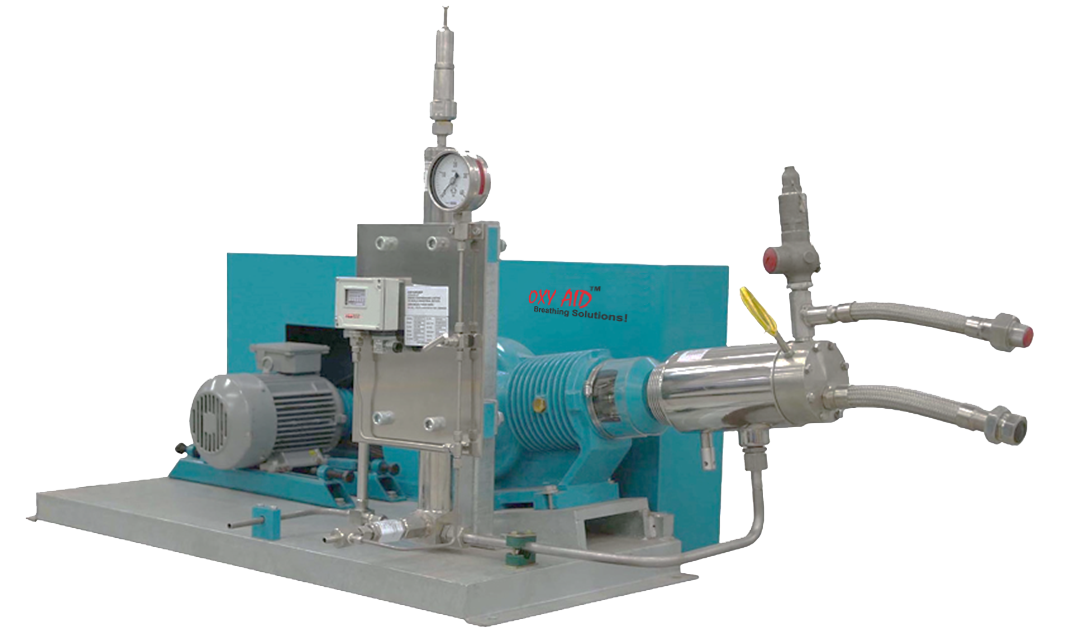

CRYOGENIC PUMPS
Newttorr cryogenic pumps are used for the transfer of cryogenic liquids i.e. liquefied gases such as oxygen, nitrogen, argon, hydrogen, helium and natural gas. They are used to pump cryogenic liquid into the cylinders and Liquid Tanks.
Newttorr cryogenic pumps are used for low volume applications in the medium to high pressure range.
Advantages of Cryogenic Piston Pumps
Single or multiple cold end design to meet various flow rates, reduce the flow impulse;
Cryogenic Pumps manufactured with Swiss Technology
Ex-proof electric devices as motors and control units to meet the LNG working conditions
Highest level of Oxygen safety
Specially seals ensure a long time of free maintenance to the cold end, up to 3500 hours;
Multiple cold end design to fulfill high flow service;
Vacuum jacketed cold end minimizes heat loss and lowers liquid’s vaporization;
Interlocking system ensure protection from wrong operations.
24-hour persistent performing;
All electric components are configured as per anti-explosion requirements;
The piston seal is made of special material and the service life of the piston seal is over 4000 hours;
Low discharge pressure fluctuation;
Fast precooling
The simple pump head module design facilitates maintenance;
The pump has the design of new type gland packing and ultra-long service life;
Maintenance is convenient: it merely takes two hours to perform a routine maintenance
LOX, LIN, LAR, CO2, N2O, LNG, Ethylene
Safe, Reliable & Heavy Duty
Approved by all major gas companies worldwide
Product Range
High Pressure Pumps: 350 bar, 25 L/min
NCP 30, NCP 36, RP 40, NCP 45
Medium Pressure Pumps: 60 bar, 70 L/min NCP 80/40
